1. Description
The TS924 and TS924AIYDT devices are rail-to-rail quad BiCMOS operational amplifiers optimized and fully specified for 3 V and 5 V operation. High output current allows low load impedances to be driven. The TS924 and TS924A devices exhibit a very low noise, low distortion, low offset, and high output current capability, making these devices an excellent choice for high-quality, low-voltage, and battery-operated audio systems. The devices are stable for capacitive loads up to 500 pF.
2. Features
1. Rail-to-rail input and output
2. Low noise: 9 nV/√Hz
3. Low distortion
4. High output current: 80 mA (able to drive 32 Ω loads)
5. High-speed: 4 MHz, 1.3 V/µs
6. Operating range from 2.7 V to 12 V
7. Low input offset voltage: 900 µV max. (TS924A)
8. ESD internal protection: 3 kV
9. Latch-up immunity
10. Macromodel included in this specification

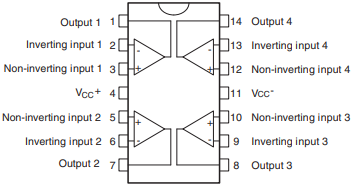

3. Pin connections
4. Applications
1. Headphone amplifiers
2. Piezoelectric speaker drivers
3. Sound cards
4. MPEG boards, multimedia systems
5. Line drivers, buffers
6. Cordless telephones and portable communication equipment
7. Instrumentation with low noise as key factor
5. Package overview
