1. Describe
TS924IPT and TS924A devices are rail-to-rail Optimized four-channel BiCMOS operational amplifier It is fully designated for 3 V and 5 V operation. High output current allows low load impedance driven. The TS924 and TS924A devices exhibit very Low noise, low distortion, low offset and high The output current capability makes these devices High quality, low voltage and Battery-powered audio system. These devices are stable and reachable for capacitive loads 500 pF.
2. Feature
1. Rail-to-rail input and output
2. Low noise: 9 nV/√Hz
3. Low distortion
4. High output current: 80 mA (Able to drive 32 Ω load)
5. High speed: 4 MHz, 1.3 V/µs
6. Working range is 2.7 V to 12 V
7. Low input offset voltage: 900 µV maximum. (TS924A)
8. ESD internal protection: 3 kV
9. Latch-up resistance
10. Macro models included in this specification
3. Pin connection
4. Application
1. Headphone Amplifier
2. Piezo speaker driver
3. Sound card
4. MPEG board, multimedia system
5. Line driver, buffer
6. Cordless phones and portable Communication equipment
7. Instruments with low noise as the key factor

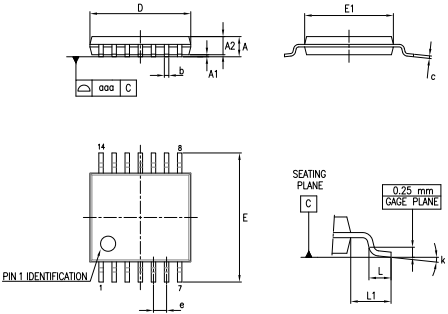

5. Package overview
