1. Description
This 4-bit non-inverting translator uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.65 V to 3.6 V. VCCA must be less than or equal to VCCB. The B port is designed to track VCCB. VCCB accepts any supply voltage from 2.3 V to 5.5 V. This allows for low-voltage bidirectional translation between any of the 1.8-V, 2.5-V, 3.3-V, and 5-V voltage nodes. When the output-enable (OE) input is low, all outputs are placed in the high-impedance state. The TXS0104EDR is designed so that the OE input circuit is supplied by VCCA. To ensure the high-impedance state during power up or power down, OE should be tied to GND through a pulldown resistor; the minimum value of the resistor is determined by the current-sourcing capability of the driver.
2. Features
1. No Direction-Control Signal Needed
2. Max Data Rates
– 24 Mbps (Push Pull)
– 2 Mbps (Open Drain)
3. Available in the Texas Instruments NanoFree™ Package
4. 1.65 V to 3.6 V on A port and 2.3 V to 5.5 V on B port (VCCA ≤ VCCB)
5. No Power-Supply Sequencing Required – VCCA or VCCB Can Be Ramped First
6. Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
7. ESD Protection Exceeds JESD 22
– A Port
• 2000-V Human-Body Model (A114-B)
• 200-V Machine Model (A115-A)
• 1000-V Charged-Device Model (C101)
– B Port
• 15-kV Human-Body Model (A114-B)
• 200-V Machine Model (A115-A)
• 1000-V Charged-Device Model (C101)
8. IEC 61000-4-2 ESD (B Port)
– ±8-kV Contact Discharge
– ±10-kV Air-Gap Discharge
3. Applications
1. Handset
2. Smartphone
3. Tablet
4. Desktop PC
4. Pin Configuration

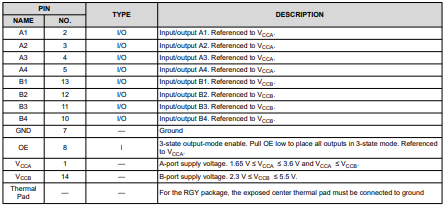

5. Pin Functions

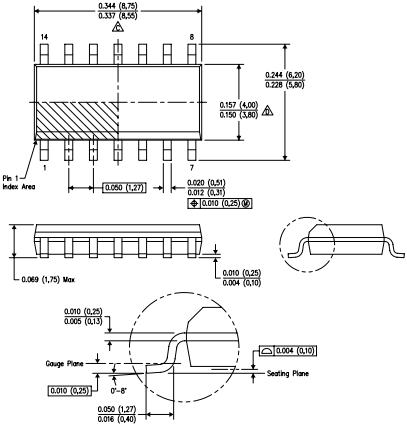

6. Package overview
