1. Description
UBX-G6010 and UBX-G6000/UBX-G0010 are the latest generation of single-chip and chipset GPS receivers Come from u-blox and demonstrate our continued commitment to the ever-evolving GPS technology. With high Performance u-blox-6 position engine, UBX-G6010-NT-B7 300CF provides better performance Sensitivity and acquisition time without the need for an external host. Complex RF architecture and interference The suppression function ensures the best performance even in the harsh GPS environment. u-blox 6 technology is designed with low power consumption and low cost in mind, and it can still provide High-performance GPS. Integrated capture and processing 1 Support and smart power management Breakthrough in low-power applications. The smallest BOM requires only 19 passive components and one LDO Built-in LNA and LNA, no need for expensive external memory. The cheaper GPS crystals and TCXO are The supported 2-layer PCB integration function and small footprint can ensure further cost savings. This UBX-G6010 is an ideal solution for cost-sensitive applications that do not require firmware update function. UBX-G6000 / UBX-G0010 supports external memory that requires firmware update function.
2. Feature
1. u-blox 6 position engine, with more than 2 million effective correlators, with <1 s acquisition, –147 dBm cold start acquisition sensitivity and 5 Hz update rate
2. Support ultra-low power logging and geotagging applications through "capture and processing" (<0.2 s capture time)
3. Intelligent user-configurable power management, which can greatly reduce power consumption
4. Support u-blox's AssistNow Online / AssistNow Offline A-GPS service, and comply with OMA SUPL
5. GALILEO is ready
6. Automotive
7. Minimum BOM cost

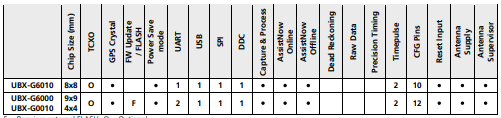

3. Product features

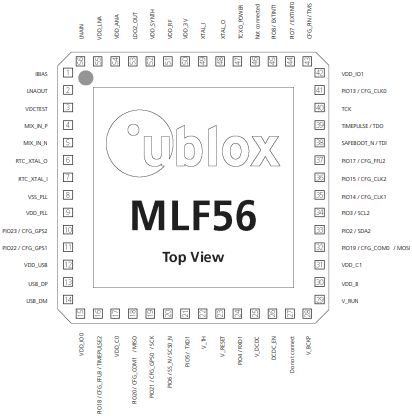

4. Pin assignment

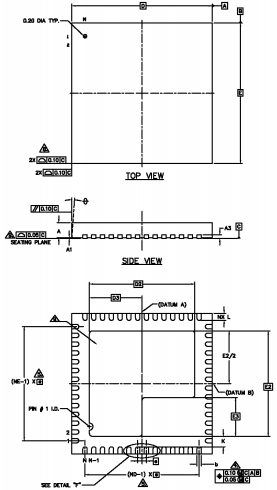

5. Mechanical specification
