DESCRIPTION
The L200 is a monolithic integrated circuit for voltage and current programmable regulation. It is available in Pentawatt® package or 4-lead TO-3 metal case. Current limiting, power limiting, thermal shutdown and input overvoltage protection (up t 60 V) make the L200 virtually blow-out proof. The L200 can be used to replace fixed voltage regulators when high output voltage precision is required and eliminates the need to stock a range of fixed voltage regulators.
Feature:
1. Adjustable output current up to 2A (Guaranteed Tj = 150°C)
2. Adjustable output voltage down 2.85V
3. Input overvoltage protection (up to 60 V, 10 ms)
4. Short circuit protection
5. Output transistor S.O.A. protection
6. Thermal overload protection
7. Adjust low bias current on pin
8. Low standby current consumption

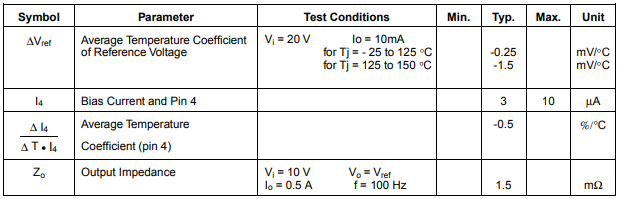

ELECTRICAL CHARACTERISTICS

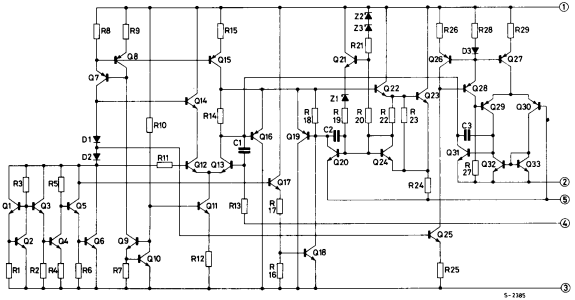

SCHEMATIC DIAGRAM
