1. Description
The MPCI-L200-00S series includes the industry's complete and cost-effective LTE/3G/2G multi-mode cellular module The standard PCI Express mini card form factor can be easily integrated into the application board, and It is also very suitable for small batch production. The MPCI-L2 module supports up to six LTE frequency bands, up to five UMTS/DC-HSPA+ frequency bands and up to four GSM/(E)GPRS Data transmission frequency band between different regions and network operators. LTE Category 4 data rates are 150 Mb/s and 50 Mb/s, these modules are ideal for applications that require the highest data rates and high-speed Internet access.
2. Product features
3. Application field
1. Industrial computing
2. Rugged terminal
3. Video communication
4. Wireless Router
5. Alarm panel and monitoring
6. Digital signage
7. payment system

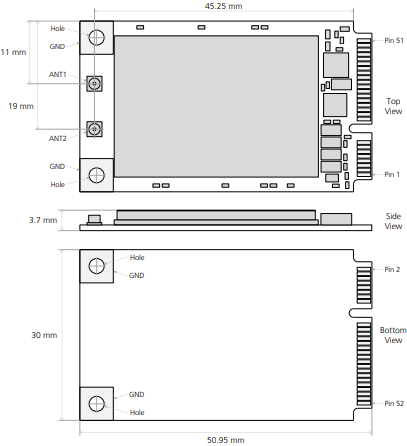

4. Mechanical specifications
