1. Description
The MPCI-L200-02S series contains a complete and cost-effective LTE / 3G / 2G multi-mode cellular module, located in The industry-standard PCI Express mini card form factor can be easily integrated into Application boards are also ideal for small batch production. The MPCI-L2 module supports up to six LTE frequency bands, up to five UMTS/DC-HSPA+ frequency bands and up to four The GSM/(E)GPRS frequency band is used for data transmission between different regions and network operators. With LTE Category 4 data rates of 150 Mb/s and 50 Mb/s, these modules are very suitable Applications that require the highest data rate and high-speed Internet access. Typical applications are industrial computing, ruggedized terminals, video communications, wireless Routers, alarm panels and surveillance, digital signage and payment systems.

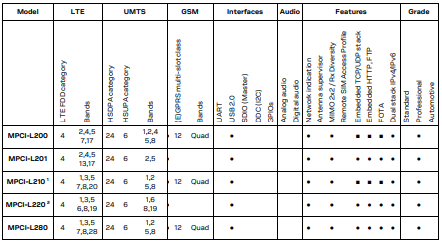

2. Product features

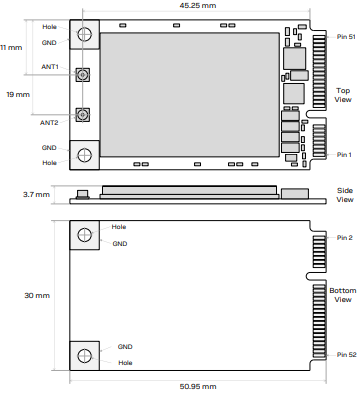

3. Mechanical specifications
