1. Description
LISA-C2 series LISA-C200-22S 1xRTT module provides dual-frequency 800/1900 MHz (LISA-C200) voice and data Compact size transmission. These modules have the characteristics of low power consumption and packet data Transmission and combine baseband, RF transceiver, power management unit and power amplifier together, Easy to integrate solutions. LISA-C2 series modules are complete, fully qualified and certified solutions that can reduce costs and achieve Short time to market. Both modules are very suitable for M2M and automotive applications, such as mobile Internet terminals and applications, car infotainment and telematics, automatic meter reading (AMR), remote Surveillance Automation and Control (RMAC), surveillance and security, road pricing, asset tracking, fleet Management, anti-theft system and point of sale (PoS) terminal. The LISA-C2 series modules support full access to u-blox GNSS receivers via the serial port. Therefore, CDMA and GNSS It can be controlled through a single serial port of any host processor. The compact LISA form factor and SMT pad allow the use of standard pick-and-place and Reflow soldering equipment can realize cost-effective mass production.

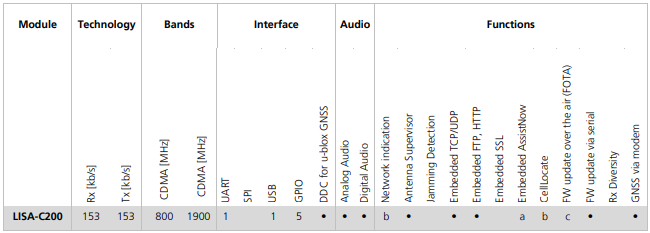

2. Product features

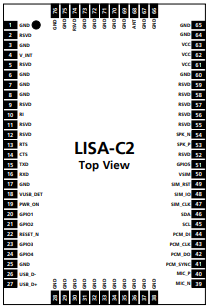

3. Pin Definition
4. Mechanical specifications
