1. Description
LISA-C200-24S series CDMA2000 1xRTT module provides dual-band 800/1900 MHz (LISA-C200) voice and data Compact size transmission. These modules have the characteristics of low power consumption and packet data Transmission and combination of baseband, RF transceiver, power management unit and power amplifier, Easy-to-integrate solution. LISA-C2 series modules are complete, fully qualified and certified solutions that can reduce costs and achieve Short time to market. Both modules are very suitable for M2M and automotive applications, such as mobile Internet terminals and applications, car infotainment and telematics, automatic meter reading (AMR), remote Surveillance Automation and Control (RMAC), surveillance and security, road pricing, asset tracking, fleet Management, anti-theft system and point of sale (PoS) terminal. The LISA-C2 series modules support full access to u-blox GNSS receivers via the serial port. Therefore, CDMA and GNSS It can be controlled through a single serial port of any host processor. The compact LISA form factor and SMT pad allow the use of standard pick and place Reflow soldering equipment.
2. Feature
1. Small LISA SMT size, easy to manufacture
2. Easy migration between u-blox 2G, 3G and 4G modules
3. Support CellLocate® and GNSS/A-GNSS integration
4. Provide important firmware updates through u-blox uFOTA engine
5. The extended temperature range is -40 to +85ºC

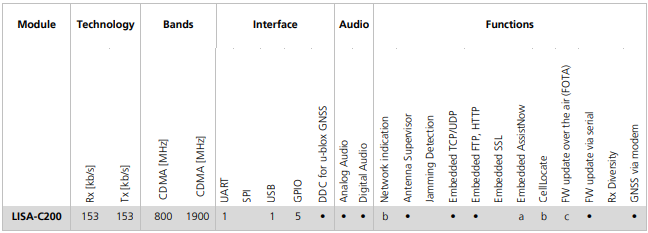

3. Product features

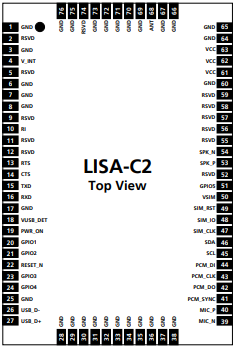

4. Pin Definition

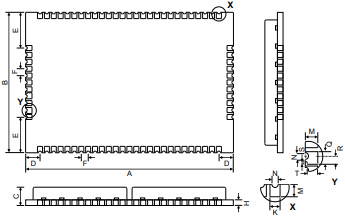

5. Mechanical specifications
