1. Description
The LISA-C2 series LISA-C200-23S 1xRTT module provides dual-frequency 800/1900 MHz (LISA-C200) voice and data transmission in a compact form factor. These modules have the characteristics of low power consumption and packet data transmission, and combine baseband, RF transceiver, power management unit and power amplifier into an easy-to-integrate solution. LISA-C2 series modules are complete, fully qualified and certified solutions that can reduce costs and achieve Short time to market. Both modules are very suitable for M2M and automotive applications. The LISA-C2 series of modules support full access to u-blox GNSS receivers via the serial port. Therefore, CDMA and GNSS It can be controlled through a single serial port of any host processor. The compact LISA form factor and SMT pad allow the use of standard pick-and-place and Reflow soldering equipment.

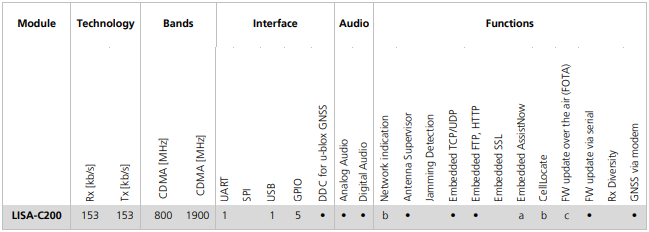

2. Product features

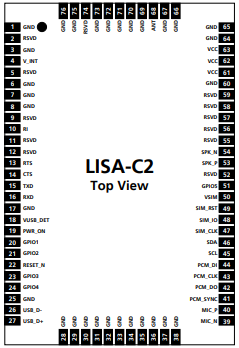

3. Pin Definition

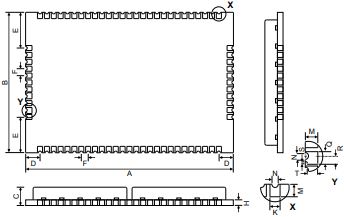

4. Mechanical specifications
