SARA-G340-02S

Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us:   brenda@hongda-ic.com

1. Description

The SARA-G340-02S series module is a multifunctional 2.5G GSM/GPRS cellular module with a miniature LGA (Land Grid Array) size. The SARA-G3 series has low power consumption characteristics, combining baseband, RF transceiver, power management unit and power amplifier in an easy-to-integrate solution. The SARA-G3 module provides a fully qualified and certified solution, which reduces costs and shortens service life SARA-G340 (dual frequency) and SARA-G350 (quad frequency) are fully functional GSM/GPRS cellular modules with a comprehensive feature set, including a wide range of Internet protocol sets. These modules also provide fully integrated access to u-blox GNSS positioning chips and modules via embedded A-GPS. Any host processor connected to the cellular network Through a single serial port module can control the cellular module and the positioning chip at the same time/ Module. SARA-G310 (quad band) and SARA-G300 (dual band) are for A large number of cost-sensitive applications provide a reduced set of GSM/GPRS functions Other features can minimize the customer's total cost of ownership. Compact type of SARA-G3 series Dimensions and LGA pads can be fully automated assembly through standard pick and place and reflow Welding equipment can realize cost-effective mass production.

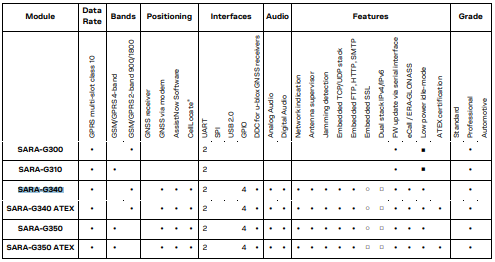

2. Product features

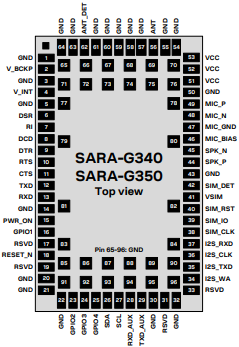

3. Pin assignment

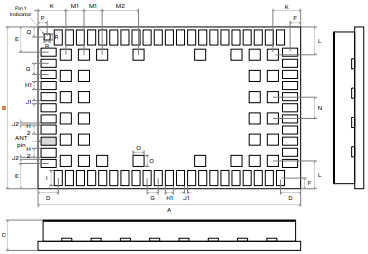

4. Mechanical specifications
