1. Description
The SARA-R410M-01B series module is a multi-band LTE-M / NB-IoT / EGPRS multi-mode solution in LTE. Mini SARA LGA size (26.0 x 16.0 mm, 96 pins). They allow easy integration into compact designs and can be seamlessly ported directly from other u-blox cellular module series. SARA-R4 series modules provide software-based multi-band configurability, which can achieve multi-area coverage in international LTE-M/NB-IoT and (E)GPRS radio access technologies. SARA-R4 series modules can provide data communication in an extended operating temperature range Temperature range from –40°C to +85°C, low power consumption, wide coverage Enter the building and basement (and use NB-IoT to enter the underground). The size of SARA-R4 series modules is compatible with u-blox LISA, LARA and TOBY Cellular Module series, and compatible with u-blox SARA-N, SARA-G and SARA-U mobile phones pin-to-pin Module series. This helps to migrate from other u-blox LPWA, GSM/GPRS, CDMA, UMTS/HSPA And higher-level LTE category modules to maximize customer investment, simplify logistics and Shorten time to market. With many interface options and integrated IP stack, SARA-R4 series modules are the best choice LPWA applications have low to medium data throughput rates, and Need longer battery life, such as smart meters, smart lighting, telematics, assets Tracking, remote monitoring, alarm panel and operating status of the connection. SARA-R4 series modules provide secure cloud product versions, including the only version. And the unchanging root of trust. This lays the foundation for reliable advanced security feature. Scalable pre-shared key management system provides first-class data Encryption and decryption on the device and from the device to the cloud. Use the latest (D)TLS Stacks and cipher suites with hardware-based encryption acceleration can provide powerful, efficient and secure solutions Protected communication. In addition, SARA-R422 series modules support a comprehensive set of 3GPP Rel. 14 features Suitable for LTE Cat M1 and Cat NB2 related to IoT applications. The dedicated SARA-R422M8S module has been integrated with the u-blox M8 GNSS receiver chip Independent GNSS antenna interface can provide highly reliable and accurate positioning data Communicate with LTE at the same time. In addition, the module also provides a unique hybrid positioning u-bloxCellLocate® data can enhance the location of GNSS, always providing location information, everywhere. Customers can perform outdated verification of the solution through wireless firmware updates, thanks to Using LWM2M's uFOTA client/server solution, LWM2M is a lightweight and compact protocol suitable for IoT. SARA-R4 series modules will also support VoLTE on Cat M1 and CSFB on 2G RAT. flexibility It is further extended to only M1/preferred or only NB-IoT/preferred through dynamic mode selection.

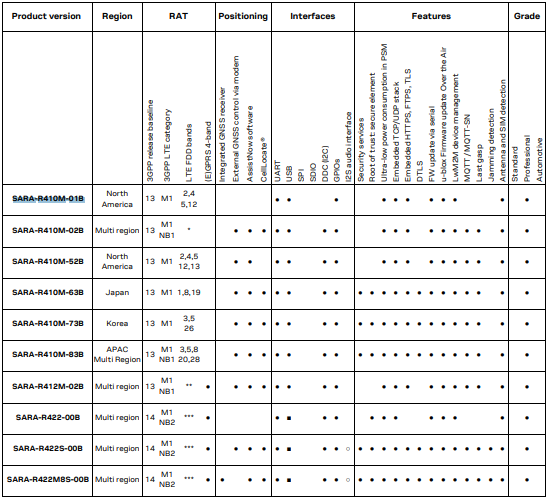

2. product description

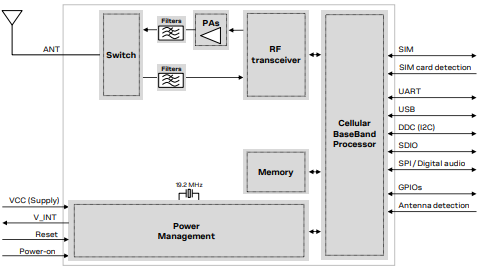

3. Block diagram
