1. Description
SARA-G3 series modules are multifunctional 2.5G GSM/GPRS cellular modules in the micro LGA. Constitutive factors. The SARA-G3 series has low power consumption characteristics, combining baseband, RF transceiver, power management unit and power amplifier in an easy-to-integrate solution. The SARA-G3 module provides a fully qualified and certified solution, thereby reducing costs and shortening installation time. market. These modules are very suitable for M2M applications. SARA-G340 (dual-band) and SARA-G350 (quad-band) are fully functional GSM/GPRS cellular modules with a comprehensive feature set, including an extensive Internet protocol set. These modules also provide complete functionality. Access u-blox GNSS positioning chip and module functions through embedded A-GPS integration. Any host processor connected to the cellular module through a single serial port can simultaneously control the cellular module and the positioning chip/module. SARA-G310 (quad band) and SARA-G300 (dual band) are high-capacity GSM/GPRS cellular modules Cost-sensitive applications provide a reduced set of additional functions for GSM/GPRS functions to reduce and minimize the total cost of ownership for customers. The compact size and LGA pads of the SARA-G3 series allow fully automated assembly with standard pick and place and reflow soldering equipment, enabling cost-effective mass production.

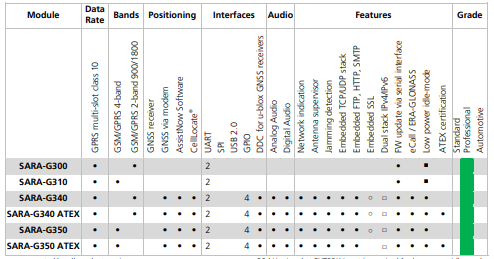

2. Product features

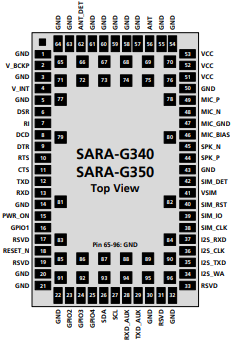

3. Pin assignment

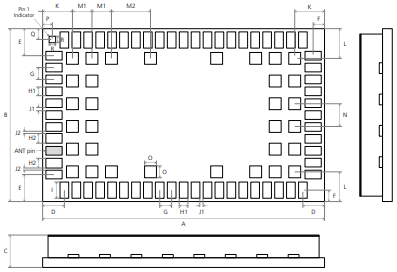

4. Mechanical specifications
