1. Description
SARA-G350-01S series modules are multifunctional 2.5G GSM/GPRS cellular modules in micro-LGA (terrestrial grid array). Constitutive factors. SARA-G3 series has low power consumption characteristics, combined with baseband, RF transceiver, power supply The management unit and power amplifier in an easy-to-integrate solution. The SARA-G3 module provides a fully qualified and certified solution, which reduces costs and shortens installation time market. These modules are very suitable for M2M applications, such as automatic meter reading (AMR), Remote Monitoring Automation and Control (RMAC), surveillance and security, eCall, road pricing, assets Tracking, fleet management, anti-theft system and point of sale (PoS) terminal. SARA-G340 (dual band) and SARA-G350 (quad band) are fully functional GSM/GPRS cellular modules with a Comprehensive feature set, including extensive Internet protocol set. These modules also provide complete functionality. Access u-blox GNSS positioning chips and modules (AssistNow Online and AssistNow offline) function. Any host processor connected to the cellular module via a single serial port The cellular module and positioning chip/module can be controlled at the same time. SARA-G310 (quad band) and SARA-G300 (dual band) are high-capacity GSM/GPRS cellular modules Cost-sensitive applications provide a reduced set of additional functions for GSM/GPRS functions to reduce Minimize the customer's total cost of ownership. The compact size and LGA pads of the SARA-G3 series allow Fully automatic assembly with standard pick-and-place and reflow soldering equipment enables cost-effective mass production.

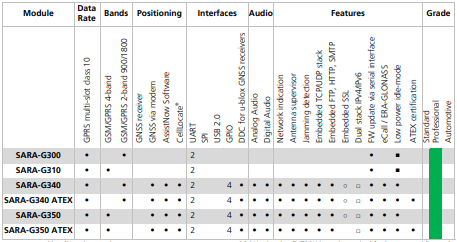

2. Product features

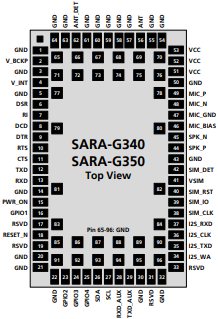

3. Pin assignment

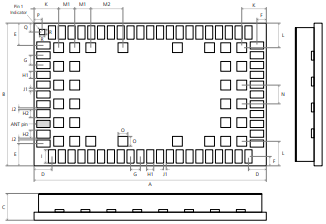

4. Mechanical specifications
