1. Description
The SARA-G350-02S series module is a multifunctional 2.5G GSM/GPRS cellular module in a micro-LGA (terrestrial grid Array). The SARA-G350-02S series has low power consumption characteristics, combining baseband and radio frequency transceivers, power management units and power amplifiers in a single, easy-to-integrate solution. SARA-G340 (dual frequency) and SARA-G350 (quad frequency) are fully functional GSM/GPRS cellular modules Has a comprehensive feature set, including a wide range of Internet protocol sets. These modules are also Provides fully integrated access to u-blox GNSS positioning chips and modules via embedded A-GPS Features. Any host processor connected to the cellular network can simultaneously control the cellular module and the positioning chip/module through a single serial port module. SARA-G310 (quad band) and SARA-G300 (dual band) are for A large number of cost-sensitive applications provide a reduced set of GSM/GPRS functions Other features can minimize the customer's total cost of ownership. The compact size and LGA pads of the SARA-G3 series can be fully automatically assembled by standard pick and place and reflow Welding equipment.

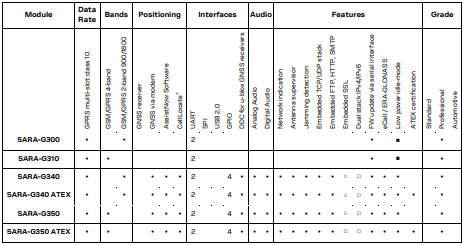

2. Product features

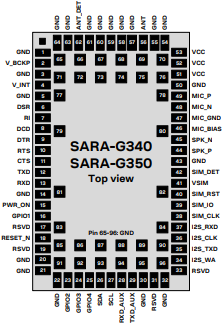

3. Pin definition

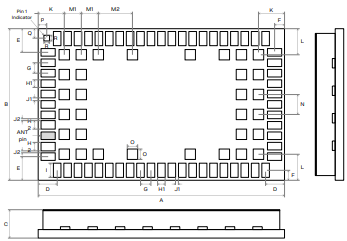

4. Mechanical specifications
